154
JACKS AND PLUGS
RIGHT-ANGLE AUDIO PHONE PLUGS PHONE: 773 792-2700
* Please visit the product pages on our website for the most up-to-date product information

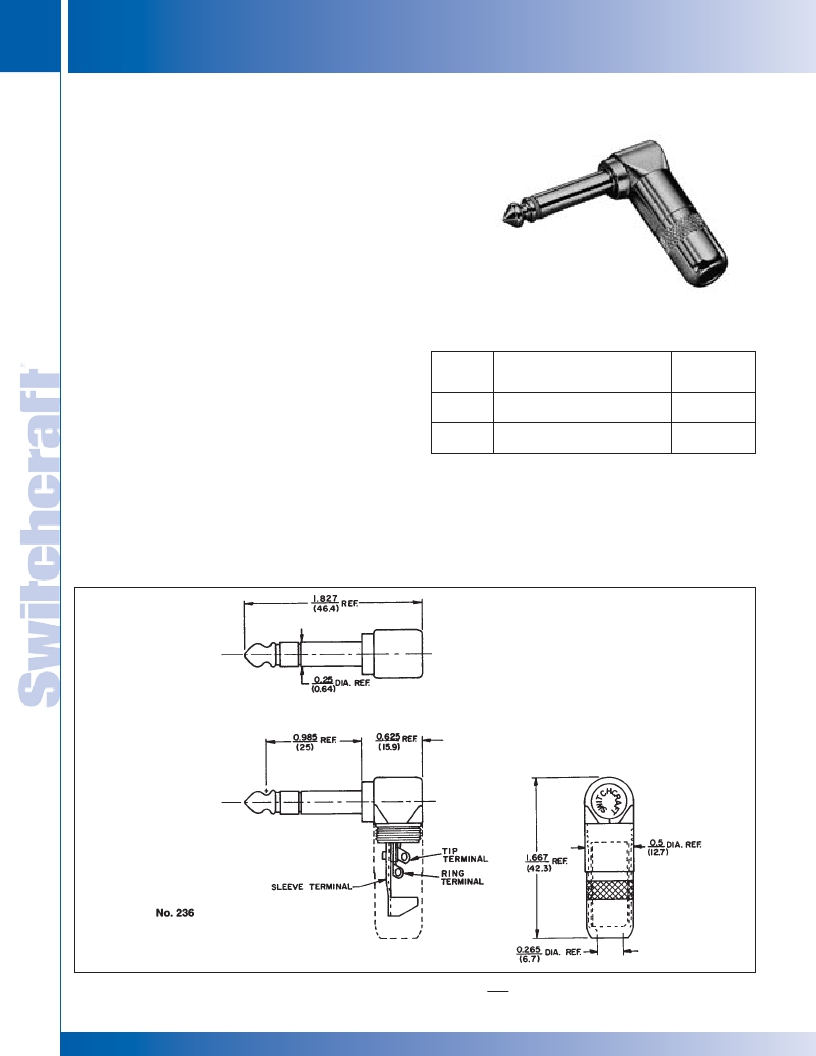

RIGHT-ANGLE AUDIO PHONE PLUG
FEATURING 3-PIECE CONSTRUCTION
AND FAST TERMINATION/ASSEMBLY
Switchcraft's 2- or 3-conductor right-angle audio phone plugs
are designed for OEMs and users of commercial phone plugs.
The plugs offer large terminals for easy wiring, and only three
pieces to assemble - handle, insulator and finger/housing
assembly and rugged reliability for stable, long-term,
trouble-free operation.
FEATURES
? Easy Termination: Large terminals accept up to 16 AWG
wiring (cables up to .25 inch diameter)
? 3-Piece Assembly: Screw on the handle for quick and
easy assembly; minimizes labor costs.
? Rugged: All metal exterior construction.
? Low Profile: Only 1/2 inch wide. Ideal for crowded,
multi-channel panels. Right-angle handle minimizes
226
Typical
space required behind equipment.
? Knurled Handles: Positive grip during connect/disconnect.
? Rugged Cable Clamp: Isolates pulling and twisting strains.
SPECIFICATIONS
Tip, Rod and Handle: Nickel-plated copper alloy.
Part
Number
236
226
Description
3-conductor 1/4" right-angle
commercial plug.
2-conductor 1/4" right-angle
commercial plug
Mating
Jack
12B, 13B
112B, 113B
11, 12A
111, 112A
Housing/Sleeve: Nickel-plated.
Tip Terminal: Tin-plated copper alloy.
Sleeve (Clamp) Terminal: Tin-plated steel.
Insulation: Thermoplastic.
Dielectric Withstanding Voltage: 500 Vac.
Insulation Resistance: 50,000 Megaohms minimum (initial).
Operating Temperature: -20°C to +65°C.
No. 236
DIMENSIONS ARE FOR REFERENCE ONLY
www.switchcraft.com
Inch
(mm)
? Registered trademark of Switchcraft, Inc.
Note: Contact your Switchcraft Representative for price and delivery
